SASS® 3100

Dry Air Sampler for Biological or Radiological Applications

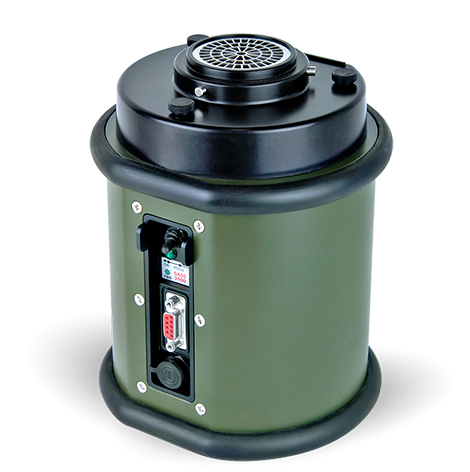

SASS 3100 Dry Air Sampler

The SASS® 3100 Smart Air Sampler System is a compact, rugged microprocessor-controlled portable air sampler designed for use with state-of-the-art electret filter media. It is highly suited to the collection of biological and radioactive aerosols. In independent tests performed by third parties, it has out-performed all competitors in terms of collection efficiency and suitability.


World Class Sampling Performance

An Industry Standard Since 2008

Since its introduction, the SASS 3100 has consistently lead the competition in independent tests.

Ideal for Field Use in Any Weather

Compact, lightweight and portable, and tough enough for use even in wet or freezing weather conditions.

Biological or Radiological Sampling

Efficiently collects either biological or radiological samples with just a change of filter.


  • Features
  • Applications
  • Specifications

Features

Product Features

  • ISO 14698-1 compliant
  • Collection periods may be days in length
  • Useable from -40°C to 70°C: no fluids
  • High efficiency for sub-micron size pathogens
  • Adjustable air flow (biological sampling): 50-300 LPM
  • Adjustable air flow (radiological sampling): 10-49 LPM
  • User-specified automated protocols
  • Wireless control option
  • Long-life primary and rechargeable battery options
  • Easy decontamination, including fan rotor
  • Compact and lightweight

Applications

Applications

  • Pharmaceutical
  • Medical facilities
  • Public health
  • Clean rooms
  • Military
  • Food processing
  • UAV's (Unmanned Aerial Vehicles)
  • Agriculture
  • Indoor air quality
  • Environmental
  • Homeland security

Specifications

Specifications

Operating principle: Collection by electret dry filter media.
Air collection rate: Bioaerosol electret filter: User adjustable 50 LPM to 300 LPM.
HEPA-style electret filter (radiological): User adjustable 10 LPM to 49 LPM.
Filter media size : 4.4 cm active diameter filter, mounted in 6.0 cm diameter injection-molded holder.
Filter mass and composition: Bioaerosol electret filter: 12 mg/cm2
HEPA-style electret filter (radiological): 2.2 mg/cm2 for active media; 8.6 mg/cm2 including backing scrim
Both filters are composed of polypropylene electret microfiber.
Device dimensions : 15.60cm W x 17.04cm D x 19.81cm H
Operating temp. range: -40° to 70°C
Storage temp. range: -40° to 70°C
Humidity range: All-weather. Optional rain shield prevents wetting of filter during rainy conditions.
Decontamination: Water-tight design allows decontamination with 1 to 5% bleach solution. Fan shell and motor/rotor assembly may be removed for decontamination.
Drive fan: High efficiency centrifugal fan with electronically commutated drive motor. Fan life is 30,000-40,000 operating hours.
Weight: 2.0 kg (3 lb 15 oz); add 1 kg for battery.
Power source: BA-5590/U primary battery, UBI 2590 rechargeable battery, or 100–240 VAC/50–60 Hz lump-in-cord 28 VDC power supply.
Operating time on battery: Standby:      BA-5590/U Primary battery: >8 days.    UBI-2590 rechargeable battery: >10 days.
Sampling:    BA-5590/U Primary battery: >20 hrs.     UBI-2590 rechargeable battery: >24 hrs.
System controls: Microprocessor controlled. RS232 or optional wireless link for remote operation or reprogramming. Dimmable LEDs monitor for battery end-of-life and fan rotation.
Communications: RS232. RF links optional.
Connectors: Standard: DB-9. Optional: Military CCSI (additional cost).
Sound Level: 45-61 dB (A) at 1 meter; peak value at exhaust port.
Package: EMI-resistant, water tight extruded aluminum case.
